Durable Movable Wall Partitions for Modern Office Flexibility

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
CN-SAOP-02
Style
Modern
Certification
CE, ISO9001
Material
Aluminum Frame
Panel Height
3000mm-16000mm
Panel Width
600mm-1200mm
Sound Insulation
50-56dB
Fire Rating
1.5 Hours
Weight (Kg/M2)
38-50
Frame Material
6063-T6 Aluminum Alloy
Surface Finish
MDF, Plywood, Fabric, Vinyl
Panel Thickness
100-125mm
P

Product Description

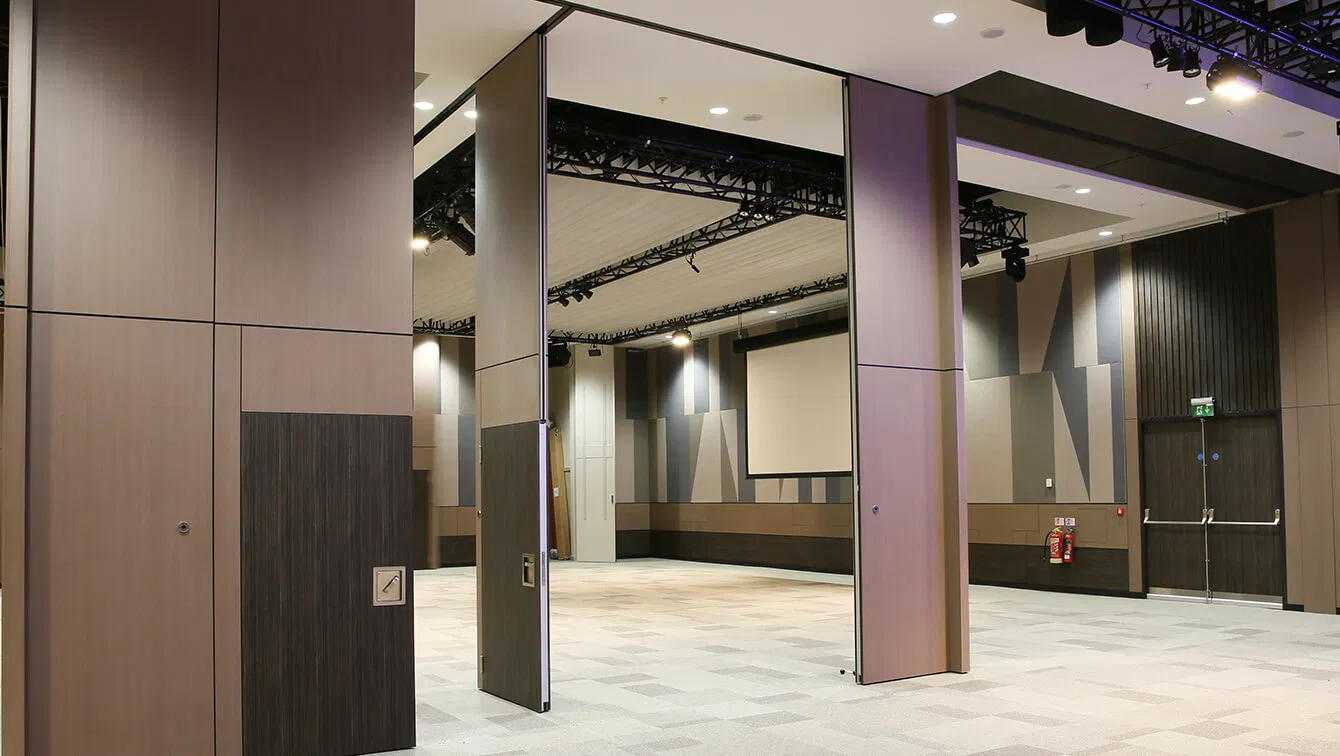

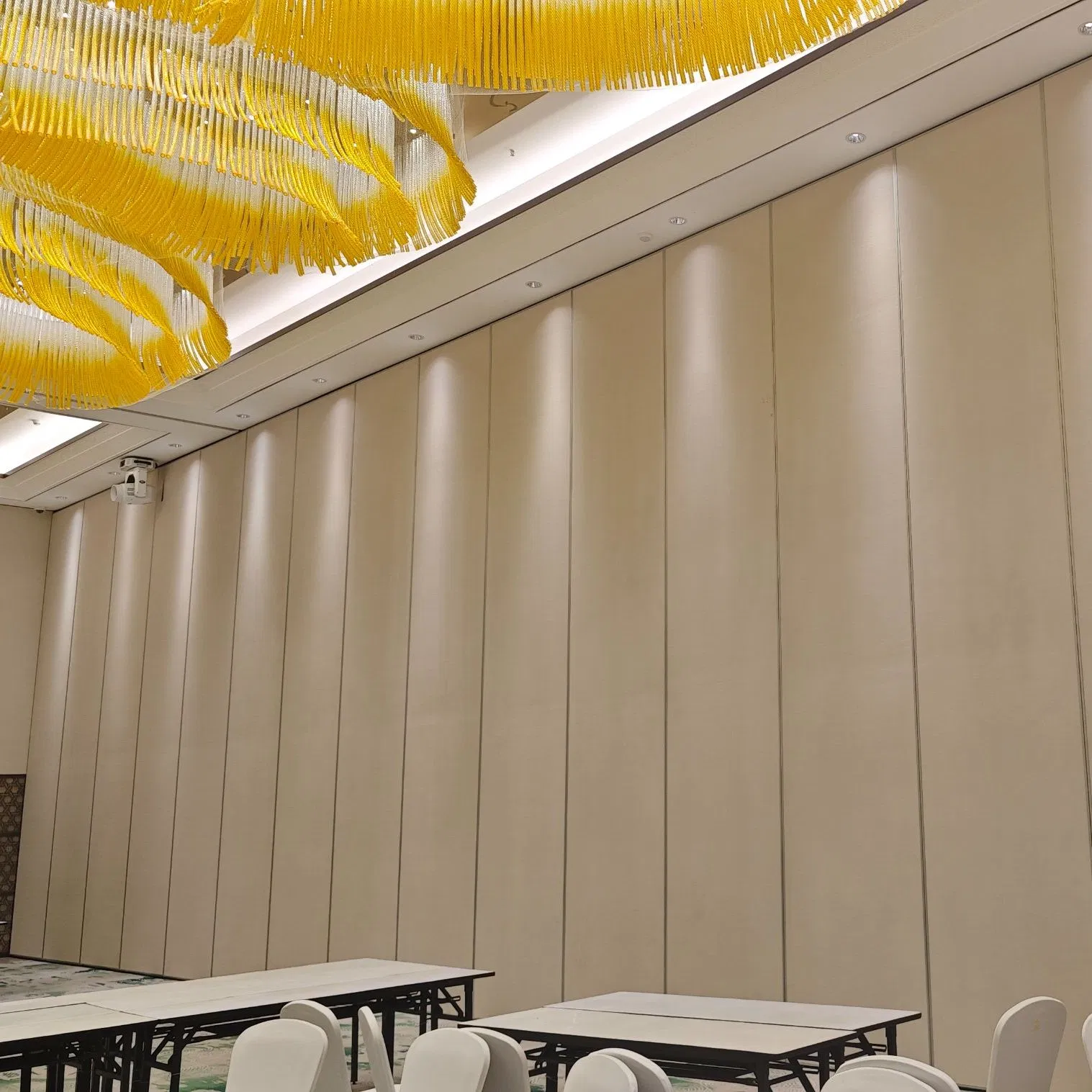

Semi Automatic Mobile Acoustic Walls & Operable Wall System

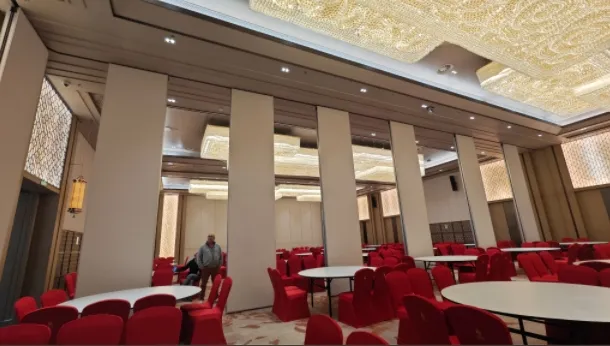

Semi-Automatic Movable Wall

Introducing the Semi-Automatic Movable Wall, a cutting-edge solution designed to revolutionize your space management needs. Crafted with precision and innovation, this operable wall system offers unparalleled flexibility and functionality, making it the ideal choice for a wide range of environments.

With its semi-automatic operation, this movable wall effortlessly glides along a track, allowing you to transform your space in a matter of minutes. Whether you need to create separate meeting rooms, divide a large hall, or enhance privacy, this system provides the ultimate versatility.

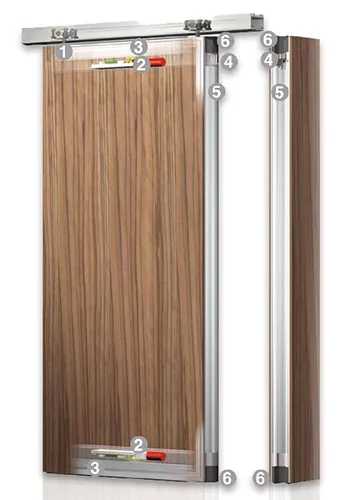

Internal Mechanism
Internal Structural Design

System Features:

Hanger support system
Motor for automatic top/bottom sealing
Advanced Horizontal and Vertical seals
E-lock system power supply
Corner acoustic seals

The Semi-Automatic E-Lock System

The semi-automatic E-lock system allows users to fully lock panels quickly and safely using an electronic key-switch. Contact switches fitted to the internal panel profiles ensure reliable power transmission along the length of the wall. This allows the wall to automatically seal at the top and bottom, locking it from movement and providing superior acoustic insulation. The system uses a 24v actuator with battery back-up availability.

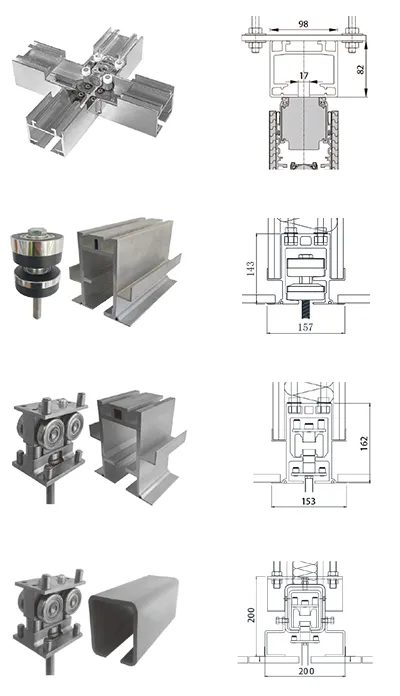

Electronic Sealing System
O

Panel & Door Selection

Full Wall Panel
Full Wall Panel
Glass Wall Panel
Glass Wall Panel
Single Pass Door with Window
Single Pass Door (Window)
Single Pass Door
Standard Single Pass Door

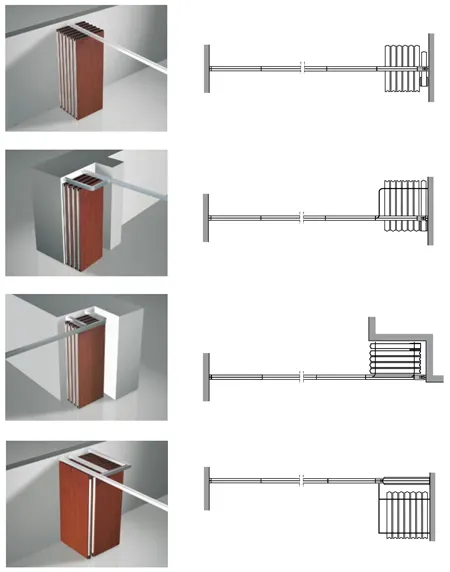

Tracking Configurations
Multiple Tracking Configurations
S

Service & Implementation

Consultation: Provide architecture drawings for a customized design scheme and quotation.
Production: Manufacturing begins upon design confirmation and agreement.
Packaging: International export standard packing with numbered numbering systems for easy identification.
Installation Support: Comprehensive shop drawings, plans, elevations, and video instructions provided.
Maintenance: Guidance on hardware lubrication and adjustment for smooth, quiet operation.
Shipping and Packing
?

Frequently Asked Questions

1. Is the movable partition acoustic (soundproof)? Yes, our system is designed for high acoustic performance. We use various sound-absorbing fillings to achieve ratings from 36dB to 56dB, depending on the project requirements and panel thickness.
2. What surface finishes are available? We offer a wide range of finishes including melamine, laminates, wood veneer, fabric, acoustic panels, and painted surfaces to complement your interior décor.
3. How to install the support structure for the wall? The system is top-supported by an overhead track. A steel or iron beam structure must be built on-site to support the full weight of the operable wall. We provide technical data to assist in the calculation.
4. How are the panels operated in the semi-automatic system? The panels are moved manually along the track into position. Once positioned, the electronic E-lock system is activated to automatically extend the top and bottom seals for stability and sound insulation.
5. What is the standard lead time for production? The lead time typically ranges from 25 to 90 days, depending on the total square meters and the complexity of the finishes selected.
6. What kind of warranty is provided? We provide a 3-year quality warranty covering the frame, hardware, and accessories, ensuring reliable operation under correct usage conditions.
